220V HDPE Butt Fusion Welding Machine , IPS 14" Hdpe Hydraulic Welding Machine

Ask Lasest Price
Brand Name :	ZEMO
Model Number :	SMD-B315/90H (3-14")
Certification :	CE , ISO
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300 set/month
Delivery Time :	3-7 working days after payment

Add to Cart

Product Details
Company Profile

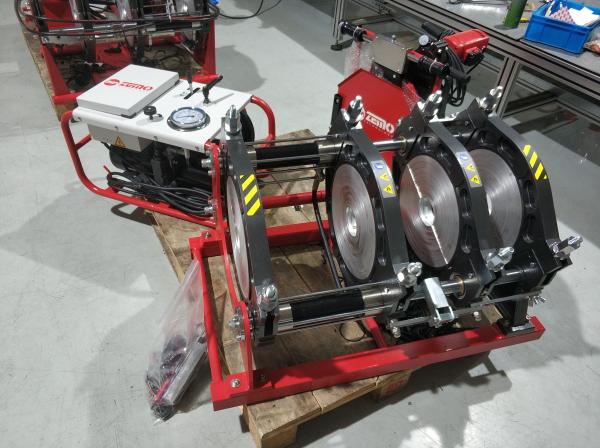

220V HDPE Butt Fusion Welding Machine , IPS 14" Hdpe Hydraulic Welding Machine

3-14" IPS 220V HDPE Hydraulic Thermofusion Welding Machine

HDPE Hydraulic Thermofusion Welding Machine Precautions

1.The machine is used to weld pipes made from PE,PP,PVDF and can not be used to weld material without description otherwise the machine may be damaged or some accident may be resulted in.
2.Don't use the machine in a place with potential hazard of explosion
3.The machine should be operated by responsible ,qualified and trained personnel
4.The machine should be operated on a dry area.The protective measures should be adopted when it's used in rain or on wet ground.
5.The machine is operated by 220v±10%,50Hz,If extended wire should be used,it should have enough lead section according

HDPE Hydraulic Thermofusion Welding Machine includes

A machine body with 4 clamps and 2 hydraulic cylinders with fast couplings;
A Teflon coated heating plate with separate temperature control system;
Self detaching device: helps removing the heating plate after soaking process;
A electrical milling cutter;
Hydraulic hoses with quick couplings;
Support for milling cutter and heating plate.

HDPE Hydraulic Thermofusion Welding Machine Specification

Product Name		3-14" IPS 220V HDPE Hydraulic Thermofusion Welding Machine
Model		SMD-B355/90H (3-14")
Pipe size (Inch)		3-14 Inch
Application		PE Pipe & Fitting Welding
Heating plate Max. Temperature		270℃
Temp.deviation in surface (170-250 ℃)		≤±7℃
Pressures Adjustable Ranges		0-6.3Mpa
Working Voltage		220V /110, 50/60HZ , single phase
Heating plate power		3.5KW
Planing tool power		1.1KW
Hydraulic unit power		0.75KW
Total Power		5.35KW
Weight		260KG
Packing	Cases	3 plywood cases
	Volume	1.07CBM

FAQ :

1. Who are we?

Zemo Welding Machinrey Co.,LTD (ZEMOWELD) is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China since 2003 .

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Butt Fusion Machine,Electrofusion Welding Machine,PPR Welding Machine,Automatic Plastic Welding Machine,Workshop Fitting Welding Machine,HDPE Fitting,Plastic Pipe Tools

4. Why should you buy from us not from other suppliers?
1. Welding equipment has CE,ISO,BV, SGS certification, as well as domestic welding industry laboratory CNAS certification. 2. 20 years of experience in welding machine export sales 3. Welder supply range from 40mm to 3000mm

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
